Metal Non Metal Laser Cutting Machine
Metal Non Metal Laser Cutting Machine

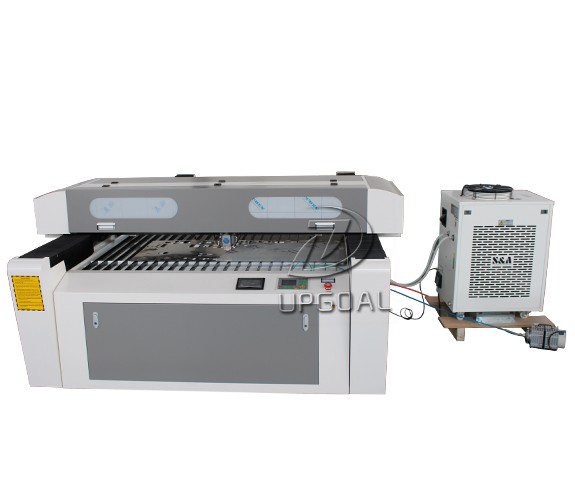

300W Metal & Non-Metal Co2 Laser Cutting Machine 1300*2500mm

Brief Introduction:

Model: UG-1325ML

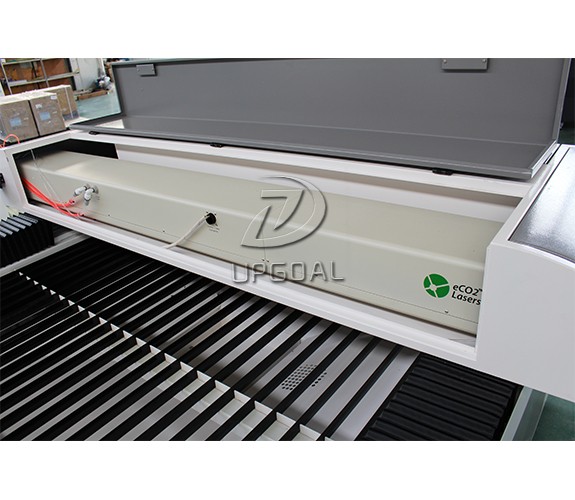

ELC 280 Co2 metal tube
Rate power 280W maximum 300W
Stainless steel/carbon steel cutting thickness 2mm
CW-6000 industrial chiller

INQUIRY NOW

Applications

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.

Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.


Features

1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.

2. Equipped with metal&non-metal laser cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.

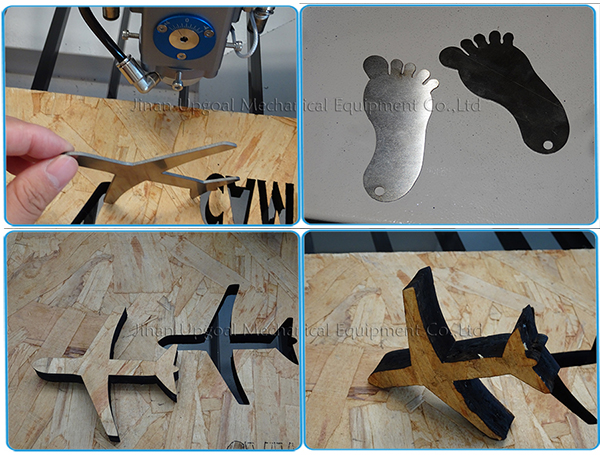

With ELC280( rate power 280W, maximum 300W)  Co2 metal tube, can for 2mm thickness stainless steel/carbon steel cutting, also can for 20mm thickness wood cutting, 30mm thickness acrylic cutting.

3. With advanced embedded RuiDa 6332M DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect

4. Specialized metal cutting using non-contact RuiDa live focusing system, ensuring same cutting quality for whole working table, no need further processing for the fracture section, high efficiency, long life time and more stable.

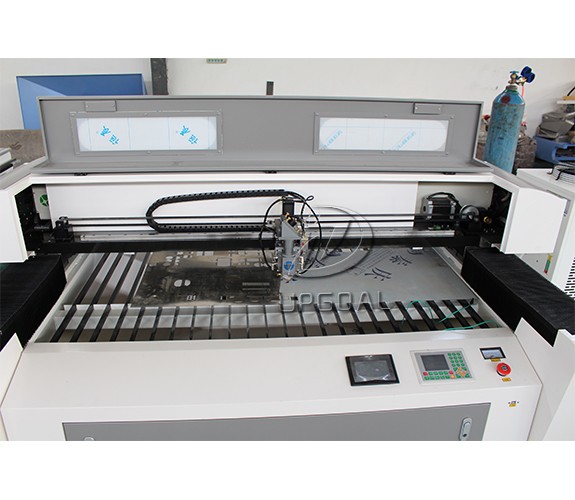

5. With auto height controller for laser head, can track the metal material surface and adjust suitable focus length, ensuring the cutting quality.

6. High strength knife strip cutting table, applicable for metal and non-metal cutting.

7. Adopting imported focus lens with high luminousness and mirror with high reflection ensure stable power transference and laser beam consistency.

8. Adopt 3phases Leadshine stepper driver with high dynamic response performance and loading capacity.

9. Belt transmission type.  High speed and precision with smooth cutting surface.

10. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti  jamming capability.

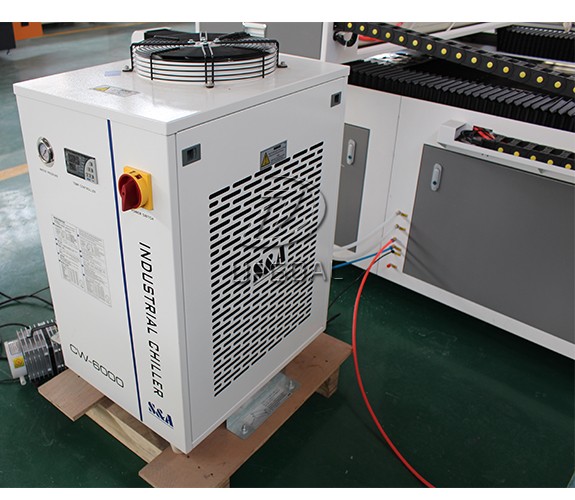

11. Teyu Industrial water chiller CW-6000 is equipped to ensure the machine can work last long time.


Effective working area

1300*2500mm

Laser Type

CO2 alloy tube

Laser tube power

Rate power 280W, maximum 300W, ELC 280

Working table

High strength knife strip

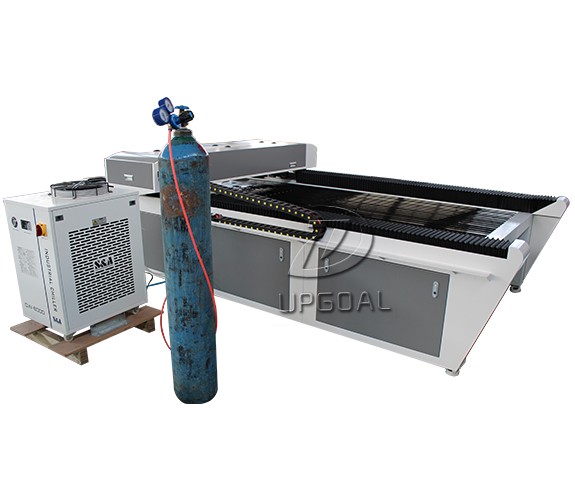

Oxygen control system

Yes

Laser head

Automatic torch height controller laser head structure for metal materials

Driver mode

3 phase stepper motor and driver(Leadshine)

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

Belt

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa control system 6332M

(Live focusing system)

Control software

MetalCut

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller, CW-6000 (Teyu)

Water protection system

Yes

Blow-off system

Air pump for the laser head

Air blower for the machine

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Voltage

AC 220V/110V, 50/60Hz, single phase

Supporting picture format

PLT、DST、DXF、BMP, DWG、AI、LAS,etc

Certificate

CE/FDA


made in China 描述2图.jpg
